Llama IIIa 380 smooth (82d)

Llama IIIa 380 smooth (82d) Quantity in Basket: None
Code: Llama_82d
Price: $68.00
Shipping Weight: 0.25 pounds

Select SOLID color ($10). Natural Ivory is no extra cost. For pearl effects, use PEARL option instead (Ivory = default)

:
Translucent/Pearl ($16 option). Do NOT select both SOLID and PEARL. (Pearl over-rides solid color choice)

:
Add a medallion ($14/pr):
Are you sending a tracing?:
YES! I want to assure proper size/shape. Tombstone is responsible for fit to tracing. Tracing will show hole pattern. **************************************
NO. I will be responsible if I choose the wrong size grip. I will measure my gun and compare to the listed specs. If I order a grip that is the wrong size or shape, I agree that it is NOT returnable. *****************************************************
I already mailed a tracing BEFORE I placed this order.
Optional note:

Quantity:

This is a smooth, contoured set of grips for the Llama IIIa .380 ACP pistol, a blow-back operated 7/8-scale 1911 style pistol in .380 ACP that has controls and appearance much like a full sized locked-action 1911 Colt. They have an average thickness of 0.35 inches versus the factory 0.20, about 1/3 more hand-filling grip, which helps tighten up the groups for most shooters, except those with small hands. smooth grip kit

The dimensions are:
    Right Grip
  • Overall height = 3.5 inches
  • Width at top = 1.85 inches
  • Width at bottom (flat area)= 1.2 inches
  • Width at bottom (max width)= 1.3 inches
  • Screw hole spacing = 2.5 inches
  • Width across center = 1.175 inches
  • Bottom screw hole center from base = 0.5 inches
  • Average thickness = 0.35 inches
    Left Grip
  • Overall height = 3.5 inches
  • Width of front notch at top = 0.6 inches
  • Width of top flat area = 0.4 inches
  • Width of swell at base = 1.4 inches
  • Screw hole spacing, location = same as right grip
  • Average width = 1.2 inches

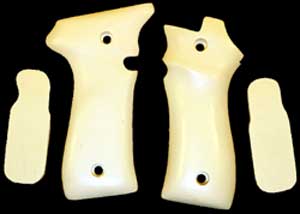

spacers on back of grips These grips come with spacers to fit into the frame cut-out for either side. Sand to make them a nice snug fit into their respective sides (you can see which one is closest to the proper shape for each side) and when they will fit properly into the cut-outs, epoxy glue them to the grip backs, per instructions provided with the grips. These little spacers are not required to use the grips, but they help stabilize and secure the grips and take some of the recoil force off the screws.

There are two screws per grip panel, which thread directly into the gun frame without bushings. The length of your factory screw is set for the thickness of the factory grip of course, so don't make your grips too thin or the screws will bind on the magazine.



Related Item(s)
Code Name Price Availability
Llama_20i Llama IIIa 380 factory (20i) $68.00

Dave Corbin
Stock items (medallions, screws, specials) usually ship within 10 days.
I can't promise a specific ship date, as it will vary with circumstances.
Depending on the time of year and number of orders pending, average time to finish a grip order is 30 to 90 days. That's average, not a guarentee. They are all individually made to your specific order.

If you do not have time to wait then you may want to consider not ordering. I can only produce quality grips if I take the time necessary to finish your order
