High Standard Model B (73c)
|
|
|
Quantity in Basket:
None
Code: HS_73c
Price: $68.00
Shipping Weight: 0.20 pounds
|
|

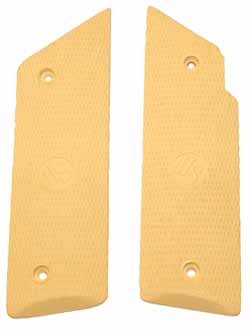

There are High Standard original style checkered grips for the
Model B .22 pistol. The Model B is a shorter grip frame
than similar early models. This grip looks best in solid
colors (checkering doesn't let the translucent nature of
pearl grips show to best advantage).
The dimensions are:
- Height measured through screw holes, base to top: 3-3/4 inches
- Hole spacing, center to center: left grip, 2.8 inch
- Hole spacing, center to center: right grip, 2.7 inch
- Width of grip, 1-1/4 inch
- Screw hole, minor diameter: 0.109/0.110 inch
- Screw hole, major diameter: 0.201 inch

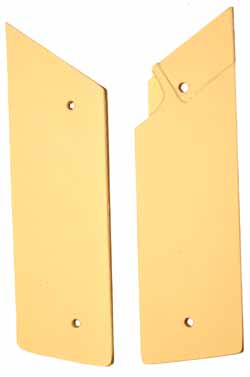

There is a small amount of routing to be done at the top
of the left grip, for clearance of parts on the frame. This
is most easily done with a rotary bit in a Moto tool or
similar hand-held, high speed rotary tool. A flat ended,
cylindrical bur is the best for this job, which ought to
take no more than 4-5 minutes.
The grips are secured by two short screws on each grip,
which come with the gun and are not provided with the
grips. If you send a tracing, be sure to mark the hole
locations. The location of the holes is the most
critical measurement for these grips.
|
