H&R 922, 732 Rnd Butt (28a)
|
|
|
Quantity in Basket:
None
Code: HR_28a
Price: $68.00
Shipping Weight: 0.20 pounds
|
|

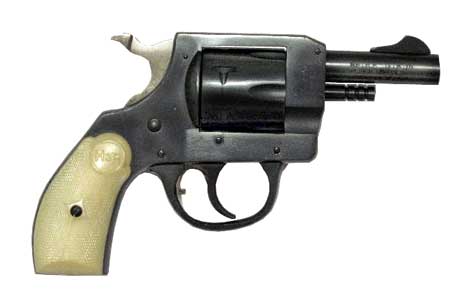

This checkered Harrington and Richardson grip fits a large number
of small framed pistols, including but not limited to:
- 732 Round Butt version
- 922 Camper
- 32 Guardsman
- 632, 633
- 922-923 Bantam Weight 22 rimfire
- 960, 970 Starter Pistol
The dimensions are:
- Over-all height to base = 2.3 inches
- Width at the base = 1.03 inches
- Width across screw hole = 1.10 inches
- Width at narrowest portion below logo = .925 inches
- Height, base to front top corner = 1.67 inches
- Height, base to rear top corner = 2.18 inches
- Width of logo section = .725 inches
- Width across the top corners = 0.85
- Height of top curve from line connecting corners = .33 inches
- Height of screw hole from base = 1.08 inches
Please note that various mounting methods were used on
the same model of gun. The standard or default is a single
screw with nut and ferrule installed in the grips, clamping
the grips against the frame. But there were examples of
the same model having a U-shaped bracket that straddled
a hammer spring and used a pair of 6-32 oval head screws,
one in either grip. There is also another U-shaped bracket
mount that uses a pair of smaller 3-48 screws but with the
examples I've seen so far, a single No.4 screw kit would
work, going past the coil hammer spring, and that is a
much better option since the bracket needs to be inset
into the back of the grips with this particular variety
of mount.
You are the only one who knows what you are holding in
your hand and observing, so be sure to look, compare and
order the proper mounting for your gun. I don't send the
"wrong" kind: I send exactly what you select. But you
can select the wrong mounting method, and I have no way to know
that. Bottom line: order the kind of mounting that
matches your gun the first time around, and save yourself
time and postage.
|
