Colt Compact Oversized (74b)
|
|
|
Quantity in Basket:
None
Code: Colt_74b
Price: $68.00
Shipping Weight: 0.20 pounds
|
|

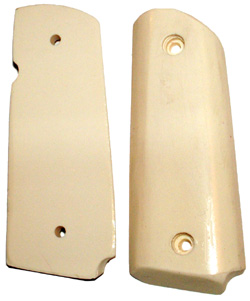

These are tough, heat and impact resistant Polyurethane Epoxy
Resin grips to fit a Colt or Kimber 45 caliber Compact
Model, and the Colt Officers model. It should also fit
other short-grip, compact 1911-style autos with the same
hole spacing of 2-5/8 inch between centers.
It does not fit standard GI grip frame with hole
spacing of 3-1/16 between centers.
It will not fit the Llama or Firestorm .45 pistols.
I have other grips listed for them.
These grips are ideal for people with large hands, who
want a little better fitting grip for their compact
"1911" style pistol. You can easily sand or file the
material for clearance of an ambidextrous safety lever.
The grips can be made thinner by sanding the backs.
You would then need to re-drill the 0.250 inch stud
holes on the back to proper depth.
Full instructions for fitting are provided with the
grips.
Please note that I have many other "compact" grips listed
as well as standard or full-sized 1911 grips,
plus grips for ParaOrdnance and other guns similar
to the 1911 which use different grip hole spacing.
Be sure to check the hole spacing on your gun.
That will tell you more than anything else which
grips should fit -- or more important, which ones
absolutely will not fit!
You need to have 2-5/8 inch mounting stud spacing,
center to center, to use this set of grips.
That is 2.625 inches, or 15.875mm.
If your grip mounting studs are 3-1/16 inches,
your gun requires standard or full-size 1911 grips.
Dimensions are:
- Width at the butt (from notch to front) = 1.24"
- Width above notch at butt = 1.5"
- Width at top screw hole = 1.22"
- Width at center = 1.4"
- Right Panel Height = 3.71"
- Left Panel Height = 3.77"
- Thickness = 0.340/.350
|
