AMT .380 Backup Check. (4c)

AMT .380 Backup Check. (4c) Quantity in Basket: None
Code: AMT_4c
Price: $58.00
Shipping Weight: 0.20 pounds

Select SOLID color ($10). Natural Ivory is no extra cost. For pearl effects, use PEARL option instead (Ivory = default)

:
Translucent/Pearl ($16 option). Do NOT select both SOLID and PEARL. (Pearl over-rides solid color choice)

:
Add a medallion ($14/pr):
Choose Mounting Method:
Use 2 screws which come with the gun
Install single-screw mounting kit
Send kit uninstalled
Optional note:
Are you sending a tracing?:
YES! I want to assure proper size/shape. Tombstone is responsible for fit to tracing. Tracing will show hole pattern. **************************************
NO. I will be responsible if I choose the wrong size grip. I will measure my gun and compare to the listed specs. If I order a grip that is the wrong size or shape, I agree that it is NOT returnable. *****************************************************
I already mailed a tracing BEFORE I placed this order.

Quantity:

AMT 380 This is a factory-style checkered grip kit for the AMT .380 Backup pocket pistol. The grips can use either the two screws which come with the gun, or a No.2 grip screw kit can be provided or installed if you prefer. The frame is tapped for the factory screws, but the same hole passes through the frame and there is nothing in the path to prevent the use of a single 2-56 screw to secure both grips to each other rather than using the frame threads.

You can check the button above to determine which mounting method you would like to use. The backs of the grip panels are flat, but you will need to lightly relieve a small area at the top of the right panel, and secure two raised panels to the back of each grip with 5-minute epoxy glue (the spacer panels fit into recesses in the gun frame and keep the grip from turning).

When removing the grips, handle the gun carefully (it should of course be unloaded) to prevent the trigger from being released and the trigger spring from flying out. A link bar is held in place on the right side of the gun frame by the right grip. A pin on this bar fits a hole in the back of the trigger. The trigger is pushed forward by a small coil spring. If the link is allowed to lift outward from its position, as it might with the right grip removed, the pin on the end of the link could release the trigger and allow it to move forward under spring pressure far enough to pop out of the frame and release the spring.

The dimensions of the grips are:
  • Length of front edge = 2.49 inch
  • Length of top edge = 1.42 inch
  • Approximate thickness of grips = 0.150 inch
  • Screw hole center to rear edge = 0.30 inch
  • Screw hole center to bottom edge = 1.29 inch
  • Thickness of spacer blocks = 0.051 inch

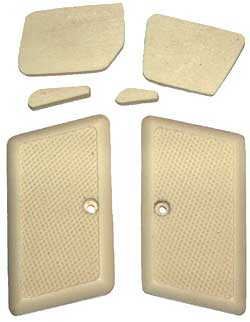

Grip back Complete set of spacers and panels
