Hopkins & Allen 32 XL (46b)

Hopkins & Allen 32 XL (46b) Quantity in Basket: None
Code: HA_46b
Price: $68.00
Shipping Weight: 0.10 pounds

Select SOLID color ($10). Natural Ivory is no extra cost. For pearl effects, use PEARL option instead (Ivory = default)

:
Translucent/Pearl ($16 option). Do NOT select both SOLID and PEARL. (Pearl over-rides solid color choice)

:
Screw Kit Options:
Yes, install the screw kit
No, just send screw kit uninstalled
Select medallions ($14):
Optional note:
Are you sending a tracing?:
YES! I want to assure proper size/shape. Tombstone is responsible for fit to tracing. Tracing will show hole pattern. **************************************
NO. I will be responsible if I choose the wrong size grip. I will measure my gun and compare to the listed specs. If I order a grip that is the wrong size or shape, I agree that it is NOT returnable. *****************************************************
I already mailed a tracing BEFORE I placed this order.

Quantity:

This little set of grips fits the Hopkins and Allen XL double action .32 S&W caliber solid frame pocket revolver and possibly others (check the dimensions, compare to your gun). There is no logo in the top portion. A small (1/2 inch) medallion could fit this area, but nothing larger.

The particular model from which the grips were copied is in my collection and is a folding hammer pocket revolver, versions of which were made from about 1884 to 1940. To load, the lever (vertical bar in front of the cylinder, mounted in the frame) is depressed and the cylinder rod is pulled out, so you can dump all the cases at once. Or you can poke each case out through an open port in the recoil shield on the right without removing the cylinder. Loading can be done with the cylinder removed or through this little port.

Size diagram Here are the dimensions:
  • (A) Width across top corners = .77 inch
  • (B)(E) Overall height = 2.09 inch
  • (C) Width across base = 0.946
  • (D) Height to inside top corner = 1.60 inch
  • Distance across round top (A -H -I) = 0.51 inch
  • (H)(I) flat step width at top = 0.13 inch
  • (F) Height of screw hole = 0.85 inch
  • (G) Rear edge to hole center = 0.483 inch
  • Width across screw hole = .9875

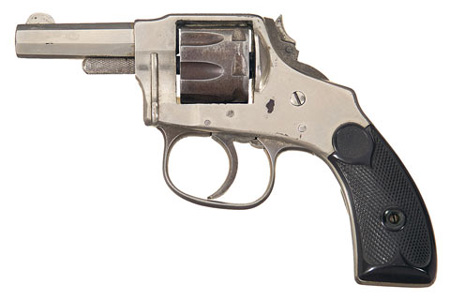

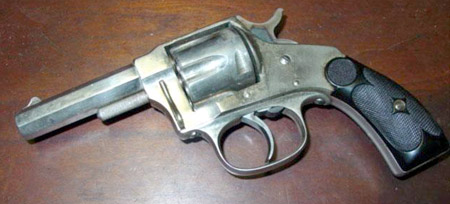

Hopkins & Allen XL DA Hopkins & Allen XL DA
