Bond Derringer (80a)
|
|
|
Quantity in Basket:
None
Code: Bond_80a
Price: $68.00
Shipping Weight: 0.10 pounds
|
|

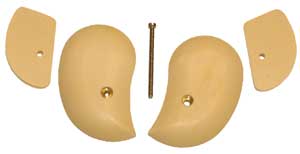

The Bond Derringer grip kit has four components plus a
screw which goes through the grip. Make sure your model
uses a screw that goes through, not two separate screws
threaded into the frame.
The back of the grips uses a raised portion to keep the
grip from turning. This kit uses two separate spacers
and two grip panels, so you can first sand the two
panel backs to adjust thickness to your liking, and then
epoxy glue the two spacers on the back, after sanding
them to match the inside of the gun's frame. They are
close, but made slightly oversize to allow for variations
in manufacturing of the gun.
Ordinary 5-minute epoxy that comes in a dispenser double-
tube with two liquids works great to permanently secure
the spacers on the back of the grips. It is easy to put
this kit together and fit it precisely to your gun for
a custom "gunsmith" fit and appearance...all you need is
120-160 grit abrasive paper, a medium grit fingernail
sanding stick (foam-core type), and 5-minute epoxy.
The dimensions are a bit hard to specify since the grip is
all curves. But the distance from the pointed end to the
maximum distance at the top curve is 2.375 inches. The
widest part of the top curved area is 1.46 inches across,
and a line parallel to that across the screw hole is
1.275 from edge to edge. the screw hole is .926 inches
form the point, and if you draw a 90-degree angle to that
line at the screw hole center, the other leg of the
90-degree angle would be .787 inches long to the back or
convex edge.
|
