Hy Hunter Western 6-Shooter (13c)
Hy Hunter Western 6-Shooter (13c) Quantity in Basket: None
Code: Schmidt_13c
Price: $68.00
Shipping Weight: 0.25 pounds
Select SOLID color ($10). Natural Ivory is no extra cost. For pearl effects, use PEARL option instead (Ivory = default)

Translucent/Pearl ($16 option). Do NOT select both SOLID and PEARL. (Pearl over-rides solid color choice)

Add a medallion ($14/pr):
Screw Kit Options:
Yes, install the screw kit
No, just send screw kit uninstalled
Are you sending a tracing?:
YES! I want to assure proper size/shape. Tombstone is responsible for fit to tracing. Tracing will show hole pattern. **************************************
NO. I will be responsible if I choose the wrong size grip. I will measure my gun and compare to the listed specs. If I order a grip that is the wrong size or shape, I agree that it is NOT returnable. *****************************************************
I already mailed a tracing BEFORE I placed this order.
Optional note:
This is a smooth grip set for the "Hy Hunter" Western Six-Shooter which was made by the German gunmaker Herbert Schmidt and imported under the Hy Hunter trade name to the USA. It is a "notch top" grip, similar to the Frontier Scout or Heritage Arms single action grips. Hy Hunter also imported guns made by Sauer & Sohn, Germany, and roll stamped the Hy Hunter name on them. His company distributed the American-made "Great Western" brand for some time as well, but did not private label those guns.

In some cases the "Bounty Hunter" grips, which are similar, will work on certain guns, but be sure to compare the dimensions provided with your gun, or better, make a pencil tracing around your existing grips on 3 x 5 index cards and mail them to me, with the screw hole marked. Then I can cut them out, hold them to the back of the grips like a gauge, and make sure what you sent will fit inside the edges of this grip. That way you have a little extra to sand to perfect fit.

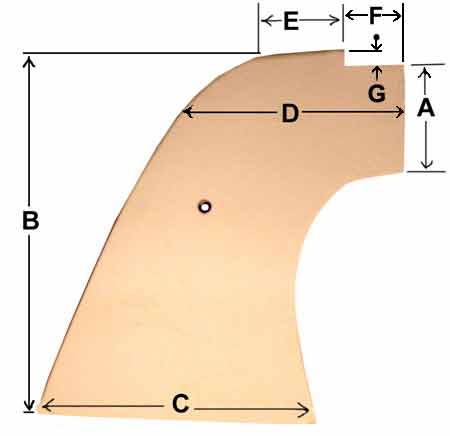

  • Height of front edge (A) = 1 inch
  • Over-all height of grip (B) = 3-1/4 inch
  • Width across the base (C) = 2-1/8 inch
  • Center of front edge to rear edge (D) = 1-3/4 inch
  • Top flat (E) = insignificant, or none.
  • Depth of notch (G) = 1/16 inch
  • Width of notch (F) = 5/16 inch
  • Height of screw hole center = 1-1/2 inch
  • Width across screw hole center = 1-1/2 inch
  • Screw hole center to rear edge = 0.75 inch
You will need to sand the edges to fit your gun exactly, and make the alignment pin hole so it perfectly matches the location on your gun. This is easy to do with a small burr in a rotary hand tool like the Dremel Moto-Tool. (Or a drill press, but be careful with a hand drill as the bit can pull right through the grip in a second.)
