S&W J-frame new models (33b)
S&W J-frame new models (33b) Quantity in Basket: None
Code: SW_33b
Price: $68.00
Shipping Weight: 0.25 pounds
Select SOLID color ($10). Natural Ivory is no extra cost. For pearl effects, use PEARL option instead (Ivory = default)

Translucent/Pearl ($16 option). Do NOT select both SOLID and PEARL. (Pearl over-rides solid color choice)

Select medallions ($14):
Screw Kit Options:
Yes, install the screw kit
No, just send screw kit uninstalled
Optional note:
Are you sending a tracing?:
YES! I want to assure proper size/shape. Tombstone is responsible for fit to tracing. Tracing will show hole pattern. **************************************
NO. I will be responsible if I choose the wrong size grip. I will measure my gun and compare to the listed specs. If I order a grip that is the wrong size or shape, I agree that it is NOT returnable. *****************************************************
I already mailed a tracing BEFORE I placed this order.

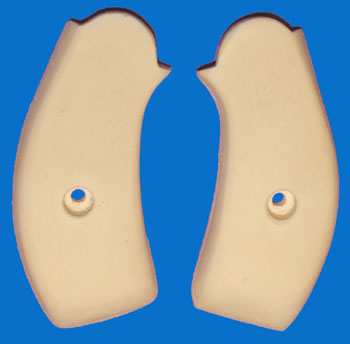

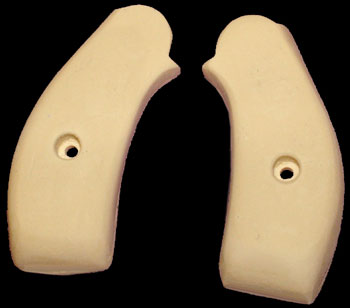

This grip is slightly larger than the No. 26 Stag or No. 27a Smooth (slight wood grain). It fits the later versions of the J-frame guns better in some cases. Here are the dimensions:
  • Height from middle of base 90 degrees straight up to rear corner tip (at top): 2-1/8 inch
  • Width across flat at base: 15/16 inch
  • Width across grip at screw hole: 1-1/8 inch
  • Height to center of screw hole from base: 1-1/8 inch
  • Height from base line (extended) 90 degrees straight up to front corner tip (at top): 2 inches
  • Distance across the base of the rounded top, from the start of each of the straight angled sections: 11/16 inch
  • Distance across the top about 3/4 inch below the corners: 7/8 inch
  • Height of rounded portion at the top: 1/4 inch (above rear top corner)
  • Width across the two top corners: 1 inch
J-frame, larger The auction includes two grip panels and standard mounting hardware, which is installed. You will need to do some sanding and fitting. These grips will not just drop on the frame, you must custom fit them.

The polyurethane can be carved, sanded, drilled and filed easily without chipping or cracking, and it is quite strong and heat resistant to about 350 degrees F, so you can leave the grips in the car on a summer day and they shouldn't warp.

Send a pencil tracing around your current grips so I can make sure these are the right size. I have other J-frame grips that are slightly smaller. Please note that I make flat back grips, as shown here, and not the wrap-over magna-style.

Related Item(s)
Code Name Price Availability
SW_37a S&W J-Frame Smooth (37a) $68.00
SW_116b S&W J-Frame Stag (116b) $75.00
SW_45c S&W J-frame smooth (45c) $68.00
SW_67d S&W J-Frame Generic Smooth (67d) $68.00

Dave Corbin
Stock items (medallions, screws, specials) usually ship within 10 days.
I can't promise a specific ship date, as it will vary with circumstances.
If you can't wait, please don't order! I'm working as fast as possible.

Be SURE to read the TERMS of SALE page, so you KNOW what you are getting.
