Tombstone Gun Grips: Llama Mini-Max thick (146b)

Tombstone Gun Grip Kits: www.TombstoneGrips.com - - Email: Jennifer@Tombstonegrips.com OR sales.tombstonegrips@outlook.com - -

Optional Sign In:

Llama Mini-Max thick (146b)

Quantity in Basket: None
Code: Llama_146b
Price: $68.00
Shipping Weight: 0.20 pounds

Select SOLID color ($10). Natural Ivory is no extra cost. For pearl effects, use PEARL option instead (Ivory = default)

:

Translucent/Pearl ($16 option). Do NOT select both SOLID and PEARL. (Pearl over-rides solid color choice)

:

Add a medallion ($14/pr):

Optional note:

Are you sending a tracing?:

YES! I want to assure proper size/shape. Tombstone is responsible for fit to tracing. Tracing will show hole pattern. **************************************

NO. I will be responsible if I choose the wrong size grip. I will measure my gun and compare to the listed specs. If I order a grip that is the wrong size or shape, I agree that it is NOT returnable. *****************************************************

I already mailed a tracing BEFORE I placed this order.

Quantity:

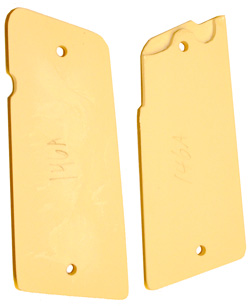

These smooth grips are thicker than factory versions, for people with larger hands. They give more comfortable control for the .45 and .40 caliber guns especially. Please note that the grips are made so that the bottom hole can be drilled to suit your particular gun. The hole spacing sometimes varies a bit, from about 2.95 to 3.05 inches center to center.

If you send a template or tracing with the hole centers accurately marked, or just specify the center to center distance on your gun's screw holes, these grips can then be made so that the holes match exactly.

Left Grip specifications:

Grip height through center: 3.6 inches
Length of front edge: 3.6 inches
Length of grip from top rear corner to base: 3.5 inches
Length of relief notch at top rear: 0.9 inches
Width across top screw hole: 1.4 inches
Width across center: 1.55 inches
Width across base above corners: 1.7 inches
Hole spacing: 2.95 center to center
Thickness at top screw hole: 0.34 inches
Thickness at bottom screw hole: 0.41 inches
Right grip specifications:

Height through center: 3.75 inches
Width across top: 1.5 inches
Front notch center from top: 1 inch
Width across center: 1.5 inches
Width across base: 1.6 inches
Hole spacing center to center: 2.95 inches
Thickness at top hole: .36 inches
Thickness at bottom hole: 0.47 inches
Bottom hole location from front edge: 0.75 inches
Please note: The right grip is thicker than the left on on purpose. Right handed shooters seem to prefer that the right grip fill their palm better, while leaving some material so you can sand in finger grooves if you wish. If you want to make the grip thinner, simply sand the back to achieve desired thickness, the same as any flat-backed grip.
