Jennings J-22 Staghorn (68d)
|
|
|
Quantity in Basket:
None
Code: Jennings_68d
Price: $75.00
Shipping Weight: 0.20 pounds
|
|

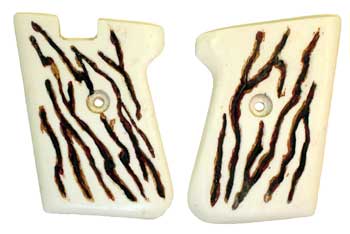

Staghorn grips for the Jennings pocket auto
22 pistol. These are slightly thicker than factory grips
for better control. You can sand them thinner if desired.
Please note that these are for later model guns with a
deep notch on the left grip top and a plastic safety.
Early models with a metal safety that moves forward and
backward (instead of up and down) use a shallow notch,
found on grip no. 142d. Be sure to order the right one
for your gun. Compare the pictures of the notch and see
which one works on your pistol.
The original Jennings pistols use the grip with shallow
safety notch. Jennings himself lost his FFL and organized
a company called Calwestco, which had the new license
although he still was associated with it. When this
business failed, it was reorganized as Bryco, which was
sued out of business in 2003. The shop foreman (Paul
Jimenez) bought the assets at auction and started the
business called Jimenez.
So the later Jennings, Calwestco, Bryco, and Jimenez
guns are essentially the same and all use this grip.
These grips mount using the original two screws that
come with the gun. A grip mount kit won't work as the
screw can't pass through the magazine.
The left grip and right grip are the same size, but have
different details at the top. The right grip has tapered
gap (0.439-inch at top, 0.41-inch at the bottom) at the
top.
The dimensions are:
- Width across top edge = 1.75 inches
- Width across the base = 1.25 inches
- Width above base curve = 1.5 inches
- Height of screw hole center from base = 1.35 inches
- Distance from screw hole center to front edge = 0.83 inches
- Length of front edge = 2.3 inches
- Relief on back of left grip, width at top = 0.9 inches
- Relief on back of left grip, height of 1st step = .38 inches
- Relief on back of left grip, overall height = 0.8 inches
- Height of front edge= 2.37 inches
- Screw hole size: .272 head, .1075 shank.
|
